Pergola Wind Resistance Standards Explained: A Guide for Buyers and Contractors
Our customers often ask us: how much wind can a pergola withstand?
A properly anchored aluminum pergola typically handles 80–100 mph (about 20–30 psf) in residential settings.
Commercial louvered pergola reach 120–150 mph (40–55 psf) when the anchoring and site match the calculation. Those numbers mean nothing without the paperwork behind them.
This guide walks you through what wind ratings actually measure, the standards that govern them, and the documents you should demand before specifying a unit on a commercial job.
Understanding Pergola Wind Ratings
Pergola wind ratings is a tested failure limit under a defined anchoring condition. The rating only holds if you install exactly as tested.
Many purchasers are confused by different wind‑related units: some documents list wind speed in mph or m/s, while building specifications use psf or Pa. Neither is incorrect; they represent casual and engineering‑professional representations respectively. Sales brochures commonly describe wind speed using mph and m/s. By contrast, building authorities adopt wind‑load pressure (psf / Pa) for code enforcement and structural calculation.
Speed tells you how fast the air moves; load tells you how hard it pushes. A 90 mph gust in an open coastal field loads a structure far harder than the same 90 mph in a sheltered courtyard, because exposure changes the pressure.
Typical ranges look like this:
A standard residential aluminum pergola sits around 80–100 mph (20–30 psf) with concrete footings.
A commercial fixed-roof unit reaches 110–130 mph (35–45 psf).
A louvered, engineered system closes the gap at 120–150 mph (40–55 psf).
Treat these as starting points. Your site, anchoring, and local code set the real number — and the supplier’s report proves it.
When you read a spec sheet, find the psf value and the footnote that names the footing it assumed, not the big mph claim on the front.
The Standards Behind Wind Resistance
Three standards show up on serious pergola specs.
In the United States, ASCE 7 sets the basic wind speed, exposure category, and importance factor that local codes adopt.
In the EU and UK, Eurocode EN 1991-1-4 does the same job. Australia runs AS/NZS 1170.2.
Each maps your project’s location and surroundings to a design wind load the structure must survive.
The word “certified” gets thrown around loosely. A real certification means a third-party lab tested the unit or a licensed professional engineer stamped a load calculation for your exact configuration.
In-house “we tested it ourselves” claims don’t satisfy a building official and won’t hold up on a commercial pergola permit.
Before you specify, ask for the test report number and the PE stamp.
If the supplier can’t produce both, the rating is a guess.
Commercial Pergola Wind Load Requirements
Commercial jobs carry weight that backyards don’t.
A pergola over a restaurant patio or hotel pool holds public occupants, faces insurance review, and must clear a permitting office that residential kits never see. That pushes the required load higher and the documentation stricter.
Exposure category drives the number more than the product does. A unit bolted to a rooftop in an open city block (Category C) or a beachfront resort (Category D) needs a bigger margin than the same model in a sheltered suburb (Category B). The structure didn’t change — the wind did.

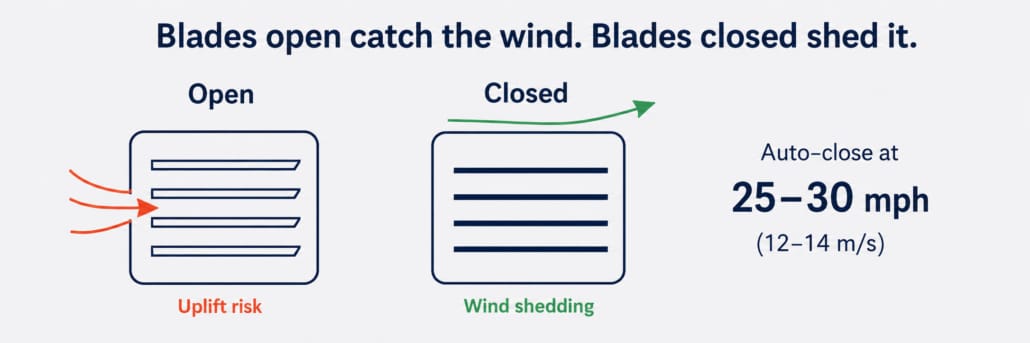

Louvered Pergola Wind Resistance
Louvered roofs feature fundamentally different load‑bearing characteristics from solid roofs, and this constitutes one of their key advantages.
When the louvers are open, air surges upward through blade gaps and generates uplift force on the frame — the most severe loading condition for the structure. Once the louvers are closed, the roof forms a nearly solid surface to dissipate wind force and prevent stress accumulation.
For this reason, commercial louver systems are equipped with dual‑control options: a remote controller for convenient daily operation, and a manual crank as backup. The manual crank enables manual opening and closing of louvers to keep the structure controllable in case of electric system failure or power loss.
For resorts and cafés, this dual‑control configuration is more than a safety feature; it reduces downtime and maintenance demands.
Nevertheless, in hurricane‑prone regions or fully‑exposed coastal sites, no louver system can replace purpose‑built fixed structures engineered to meet local code requirements.

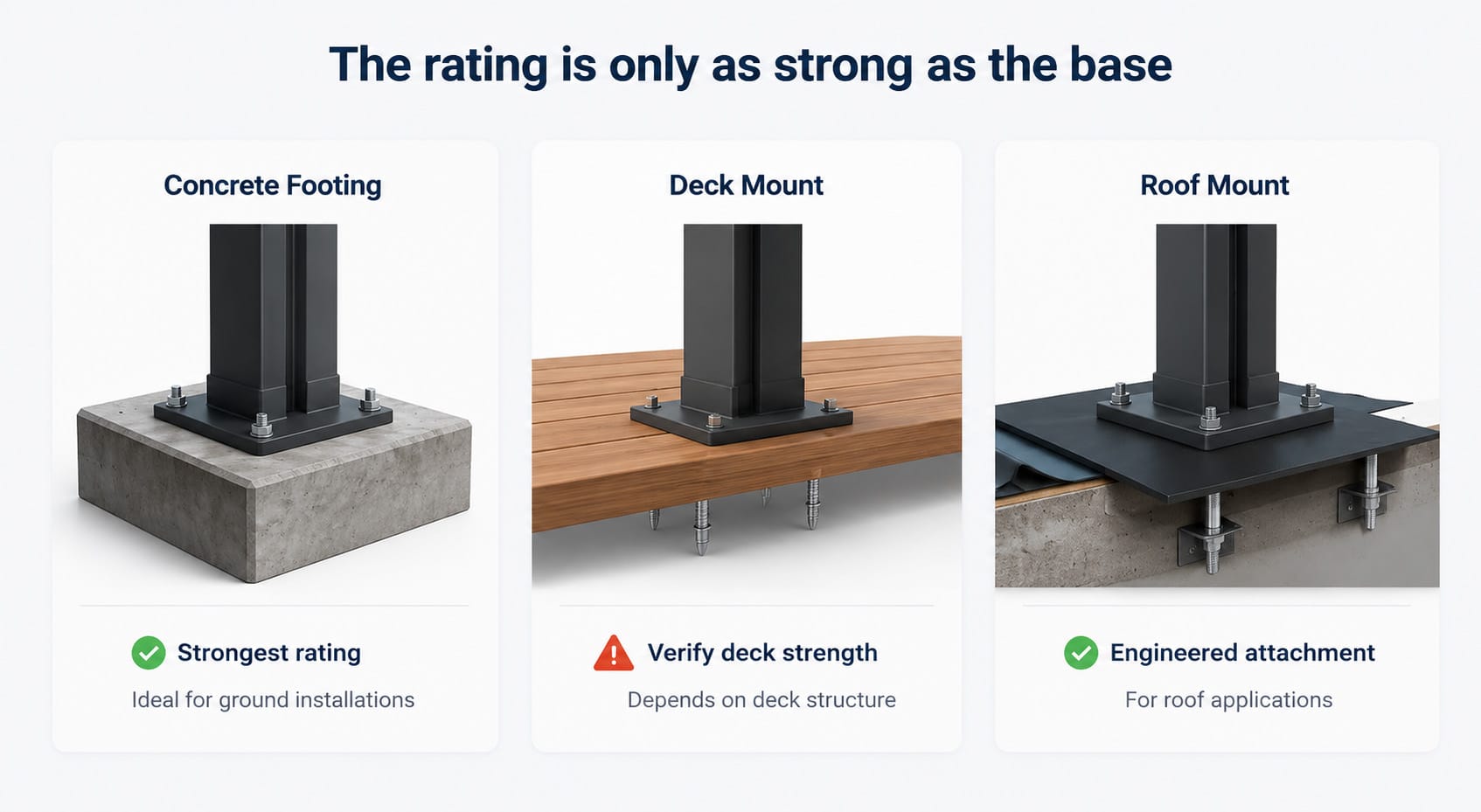

Factors That Determine Real-World Wind Resistance
The printed rating dies at the foundation.
Anchoring is the number-one reason pergolas fail in wind, and it’s the easiest thing to get wrong on site.
A unit rated for 130 mph on poured concrete footings performs like a 70 mph unit on a weak deck with four lag bolts. The rating assumes the tested base.
Material sets the ceiling. Aluminum carries high strength at low weight, won’t rot like timber, and doesn’t rust like steel in coastal air — so the frame keeps its rated performance for years instead of degrading.
Span, post size, and bracket design are the engineering levers. Longer spans between posts flex more; bigger posts and welded or engineered brackets close that gap.
When a supplier quotes a number, ask what post spacing and footing it assumed. If they shrug, the number is soft.
Buyer's & Contractor's Pre-Purchase Checklist
- Get the wind-load report and PE stamp for your exact site, not a generic brochure number.
- Confirm the anchoring spec matches your surface — concrete, deck, or roof.
- Check the auto-close threshold if you’re buying louvered.
- Verify the warranty covers wind damage, then read the exclusions.
- Match the rating to your exposure category, not the sales floor’s “standard.”
- Ask which code (ASCE 7, Eurocode, or regional) the calculation used.
- Confirm lead time on engineered drawings if the permit needs them.
FAQ
How much wind can a pergola withstand?
Typically 80–100 mph residential, 120–150 mph engineered commercial — with correct anchoring.
Do I need a permit?
On commercial installs, almost always. The wind-load calc is usually part of the submission.
What wind load do commercial pergolas require?
It depends on location and exposure, commonly 35–55 psf. Your address sets it.
Are louvered pergolas safe in hurricanes?
Not as a standalone defense. Auto-close helps in normal storms; coastal hurricane zones need engineered fixed structures.
How do I verify a supplier’s claim?
Ask for the third-party test report and PE stamp. No documents, no proof.
Conclusion
Wind ratings live or die on the details: psf over mph, the right code, and anchoring done to spec. A number on a brochure means nothing without the report behind it. Before you specify or install, get the calculation, the stamp, and the warranty in writing.
Are you constructing a commercial pergola or specifying one for your clients? Backed by 29 years of pergola manufacturing experience, we invite you to send us your project location. We will deliver a code‑compliant proposal with clearly‑stated wind‑resistance ratings for your reference!
