Pergola Motor IP Rating Explained: What Does IP67 Mean?

Quick View:

IP67 is an Ingress Protection rating defined by IEC 60529.
The first digit (6) means an enclosure is dust-tight, while the second digit (7) indicates protection against the harmful effects of temporary water immersion under specified test conditions, typically for 30 minutes.
For motorized pergolas, IP67 helps describe the dust and water protection of rated electrical equipment, but it does not guarantee that the entire pergola roof is waterproof.

Motorized pergolas are designed for outdoor use, where rain, dust, humidity, and changing weather conditions are part of everyday exposure. Protecting their electrical components from these elements is essential for reliable operation.

One important factor to consider is the IP (Ingress Protection) rating. If you are interested in outdoor electrical equipment, you have likely often seen the rating IP67.

So what exactly does IP67 mean? And how does it relate to the performance and reliability of motorized aluminum pergolas? This guide will tell you all about it!

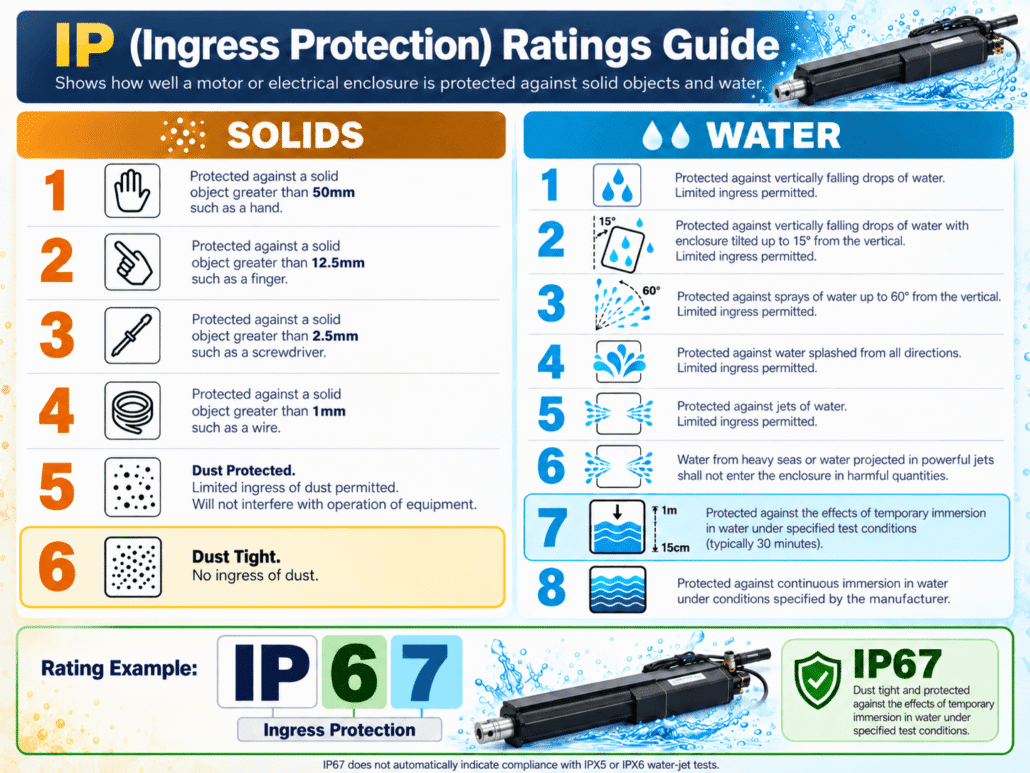

What Is an IP Rating for a Pergola Motor?

IP stands for Ingress Protection. Defined by the international standard IEC 60529, it classifies how well an electrical enclosure protects against the entry of solid objects and water.

An IP rating normally consists of two digits, each representing a different type of protection:

First digit (0–6): Protection against access to hazardous parts and the entry of solid foreign objects, including dust. A rating of 6 means the enclosure is dust-tight.

Second digit (0–9): Protection against water under specified test conditions, ranging from dripping and splashing water to water jets and immersion.

For example, IP67 combines dust-tight protection (6) with protection against the harmful effects of temporary immersion (7).

A higher water-protection number does not always mean that a product has passed every lower-numbered water test.

An X in either position means that a protection classification has not been specified for that category. It does not necessarily mean the equipment was never tested.

Importantly, an IP rating applies to the tested enclosure under specified conditions. It is not a general measurement of product quality, mechanical durability, or expected service life.

What Does IP67 Mean?

IP6X: DustS-Tight Protection

IP6X is the highest dust-protection classification under IEC 60529. During standardized dust-chamber testing, the enclosure must prevent dust ingress under the applicable test conditions.

The gap between 6 and 5 is bigger than it looks, because IP5X permits limited ingress as long as the device still works. For a louver actuator that matters: dust rarely causes an immediate failure. It settles on gear teeth, limit switches and bearings.

IPX7: Temporary Immersion Protection

IPX7 indicates protection against the harmful effects of temporary immersion in water, typically tested for 30 minutes under specified immersion-depth conditions — commonly illustrated as one metre for a small enclosure.

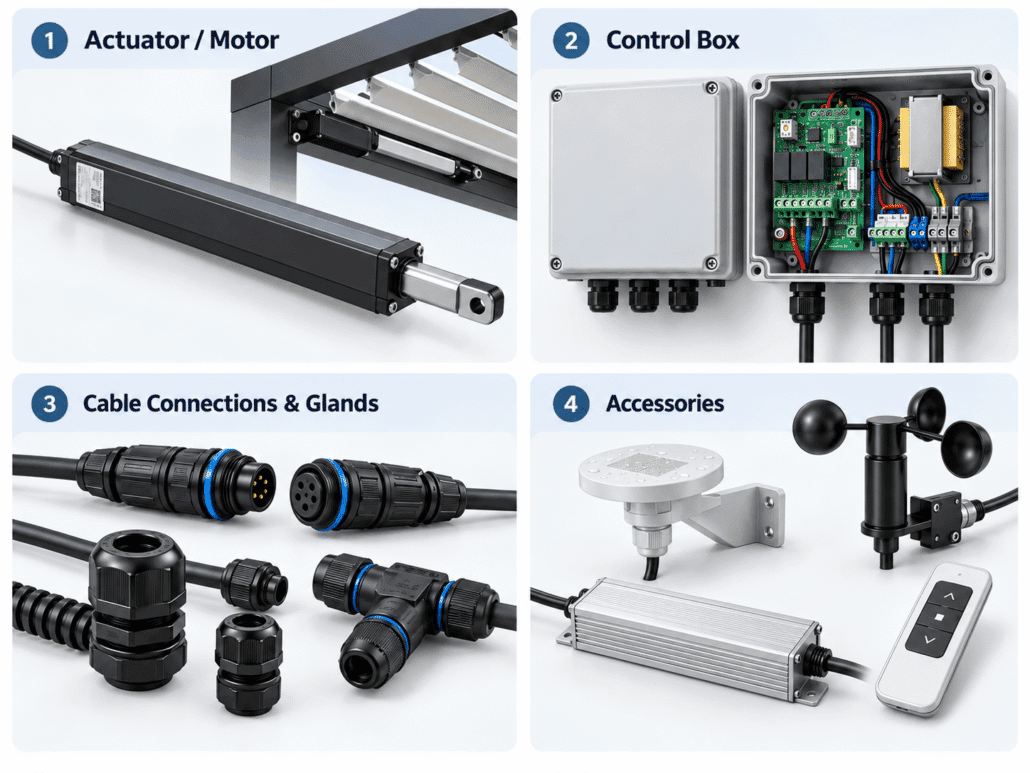

Which Parts of a Motorized Pergola Have IP Ratings?

A motorized pergola contains multiple electrical components, each of which may have its own protection rating. Overall reliability depends not only on these ratings but also on how the components are connected, positioned, and installed.

In practice, the assemblies to ask about are:

Louver actuator or motor: the drive unit that opens and closes the blades.

Control box: PCB, transformer and terminals.

Cable connections and glands: frequently overlooked, and a common weak point. A correctly rated actuator wired through an unrated gland is not a sealed assembly.

Accessories: rain and wind sensors, LED drivers, handsets.

When a supplier quotes one figure for “the pergola”, ask for the figure for each component and for the entries between them.

Why Does IP Protection Matter for Outdoor Pergolas?

While the statement that “rain and dust can damage electronic equipment” is true, it is too broad to serve as a basis for specific protection design. In fact, outdoor environments present risks beyond just rain and dust—which is precisely why IP protection is so critical.

Condensation and thermal cycling: A sealed enclosure can trap the humidity present at assembly, and a housing that heats in the sun then cools quickly in a shower creates pressure differentials across its seals over time. Condensation is therefore a genuine corrosion risk for circuit boards, independent of any IP rating.

Cleaning with directed water: Owners and maintenance teams clean pergolas with hoses and pressure washers. An immersion rating does not describe how an enclosure behaves under a directed jet, so cleaning practice should be considered separately from the IP code.

Wind-driven rain: Rain arriving at an angle with momentum reaches details that still water does not.

Insects: Dust-tight enclosures also keep wasps and ants out. Nests inside a control box are a real cause of short circuits in warm climates.

Salt-laden air: Coastal sites — and the one problem no IP number addresses, covered below.

Moisture-resistant materials, well-designed seals and condensation-control measures can all improve long-term reliability, but they have to be evaluated on their own terms, not assumed from an IP code.

IP65, IP66 and IP67: A Quick Comparison

Rating	Water Test (IEC 60529)	Protected Against	Typical Outdoor Use
IP65	Water jets, 6.3 mm nozzle, 12.5 L/min	Rain, hose cleaning	General exposed equipment
IP66	Powerful jets, 12.5 mm nozzle, 100 L/min	Heavy seas, strong jets	Marine decks, exposed facades
IP67	Temporary immersion, typically 30 minutes under specified depth conditions	Accidental submersion, temporary flooding	Equipment requiring temporary immersion protection
IP68	Continuous immersion; depth and duration set by the manufacturer	Permanent submersion as specified	Submersible pumps, buried fittings

IP ratings do not automatically include lower-level water protection just because the number is higher. This is critical to understand.

The water resistance tests are separate and independent.

Under the IEC 60529 standard, a product with an IPX7 rating is not required to also pass the IPX5 or IPX6 spray tests. An enclosure can pass immersion testing, yet its gasket seal may never have been evaluated against pressurized water jets.

That’s why manufacturers who complete both tests use dual markings, such as IP65/IP67 or IP66/IP67.

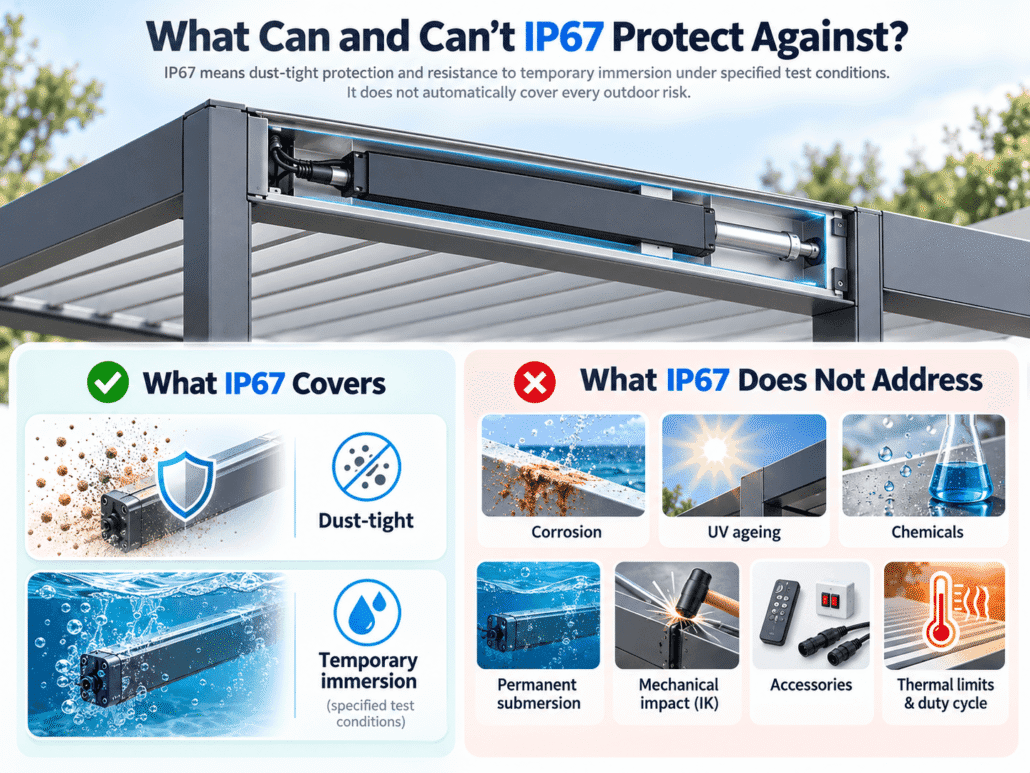

What Can and Can't IP67 Protect Against?

IP67 establishes dust-tight protection and resistance to temporary immersion under specified test conditions. It does not, by itself, verify resistance to directed water jets, pressure washing, or every form of wind-driven rain.

What the rating also does not address:

Corrosion. IP testing says nothing about salt spray. A coastal project needs a finish and fastener specification — coating system, hardware grade, circuit-board protection —in addition to the IP code.

Ultraviolet ageing. Gaskets and cable sheaths degrade in sunlight. The classification is established on a new unit, not one after five summers.

Chemicals. Pool chlorine, cleaning agents, fertilisers.

Permanent submersion. That is IP68, and only for the depth and duration the manufacturer declares.

Mechanical impact. A separate standard: the IK rating (IEC 62262), where IK08–IK10 indicate impact resistance.

Accessories: rain and wind sensors, LED drivers, handsets.

Thermal limits and duty cycle. A sealed enclosure has a thermal budget, and sealing makes heat dissipation harder rather than easier.

Does IP67 Make the Entire Pergola Waterproof?

The anwser is No. A louvered roof manages water through three separate systems, and only the first involves an IP rating:

Electrical ingress protection. The IP rating. Keeps water out of an electrical enclosure.

Roof water shedding. Blade geometry, blade overlap and the seals between closed blades. This stops water falling through the roof.

Drainage. A continuous path from gutter to beam, down the post and out at the base. This carries water away instead of letting it spill over the edges.

An IP67 motor on a roof with poor blade overlap will still leave you wet. A perfectly sealed roof with an undersized gutter will still overflow. Waterproof is a property of the system, not of any single component — which is why two pergolas using the same roof material can perform completely differently.

For a full breakdown of those factors, see What Makes a Pergola Roof Truly Waterproof.

What Else Affects Pergola Motor Reliability?

The IP code is one line in a long specification. The rest matters just as much:

Thrust and torque margin An actuator sized at exactly the louver load runs hot and ages fast. Look for margin, rated at the real operating temperature.

Duty cycle A restaurant terrace cycled dozens of times a day needs a different duty class than a residential roof opened twice.

End-stop method Electronic limits versus mechanical stops — over years this affects blade alignment, and blade alignment is what keeps the roof sealed.

Installation practice Improper installation can contribute to premature electrical faults — missing drip loops, unsealed conduit entries, enclosures mounted face-up.

Power quality Surge protection, correct earthing, adequate cable cross-section for the run length.

Frequently Asked Questions

Is IP67 better than IP65 for a pergola motor?

Not automatically. IP65 covers water jets and IP67 covers temporary immersion, and IEC 60529 treats them as separate tests — a product classified IP67 is not required to have been tested against water jets. A dual marking such as IP65/IP67 is more informative than either number alone.

Can an IP67 motor stay underwater permanently?

No. IP67 covers temporary immersion under specified test conditions; it is not a classification for continuous submersion. That is IP68, where the manufacturer defines depth and duration. Neither rating addresses corrosion, and prolonged saltwater exposure can accelerate corrosion, depending on materials and sealing integrity.

Does an IP67 motor mean the pergola roof won’t leak?

No. The IP rating describes an electrical enclosure only. Whether the roof keeps rain out depends on blade overlap and blade seals, roof slope, and the drainage path from gutter to outlet. These are three separate systems and should be specified separately.

Do all parts of a motorized pergola have the same IP rating?

Usually not. Different components within the same system may carry different classifications, and cable entries may be rated differently again. Ask for the classification of each component, and how the connections between them are protected.

Conclusion

IP67 provides a defined level of protection against dust and temporary water immersion, but it does not guarantee that every component of a motorized pergola is waterproof.

Understanding where IP ratings apply — and what they do not measure — helps buyers evaluate outdoor electrical equipment more accurately.

For a reliable motorized aluminum pergola, electrical protection should be considered alongside motor performance, proper installation, roof sealing, and drainage design. No single IP rating can replace the importance of a well-designed system.
